滚花圆身铆螺母使两个物料通过一个可承重的螺纹用螺栓紧密连接在一起。滚花竖纹使铆接好的螺母防转程度，较平滑圆柱有一定的提高。滚花圆柱铆螺母有平头和小沉头等头型，并有铝、铁、不锈钢等材质的选择。
低沉头圆身滚花铆接螺母钢制开口
详细介绍

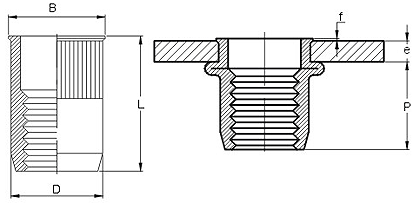

e |
| Dmax | B | f | L | P | Setting Load | Torque(N.m.) | ||
max | ||||||||||
M3 | 0.5 | 1.5 | 5 | 4.98 | 6 | 0.4 | 8.3 | 5.8 | 3500 | 1.2 |
1.5 | 3 | 5 | 4.98 | 6 | 0.4 | 9.8 | 5.7 | 3500 | 1.2 | |
M4 | 0.5 | 2.5 | 6 | 5.98 | 7 | 0.4 | 11.3 | 5.8 | 5600 | 3 |
2.5 | 4 | 6 | 5.98 | 7 | 0.4 | 11.9 | 5.9 | 5600 | 3 | |
M5 | 0.5 | 2.5 | 7 | 6.98 | 8 | 0.4 | 13 | 7.3 | 8500 | 6 |
2.5 | 4 | 7 | 6.98 | 8 | 0.4 | 13.8 | 7.6 | 8500 | 6 | |
M6 | 0.5 | 3 | 9 | 8.98 | 10 | 0.4 | 14.5 | 8 | 11000 | 10 |
3 | 4.5 | 9 | 8.98 | 10 | 0.4 | 15.3 | 8.6 | 11000 | 10 | |
4.5 | 6 | 9 | 8.98 | 10 | 0.4 | 16.9 | 8.6 | 11000 | 10 | |
M8 | 0.5 | 3 | 11 | 10.98 | 12 | 0.5 | 18 | 11 | 15000 | 24 |
3 | 4.5 | 11 | 10.98 | 12 | 0.5 | 18.9 | 12 | 15000 | 24 | |
4.5 | 6 | 11 | 10.98 | 12 | 0.5 | 20.5 | 12 | 15000 | 24 | |
M10 | 0.5 | 3 | 13 | 12.98 | 14 | 0.5 | 22 | 13.9 | 21000 | 48 |
3 | 4.5 | 13 | 12.98 | 14 | 0.5 | 21.9 | 14.3 | 21000 | 48 | |
4.5 | 6 | 13 | 12.98 | 14 | 0.5 | 23.5 | 14.3 | 21000 | 48 | |
