滚花圆身铆螺母使两个物料通过一个可承重的螺纹用螺栓紧密连接在一起。滚花竖纹使铆接好的螺母防转程度，较平滑圆柱有一定的提高。滚花圆柱铆螺母有平头和小沉头等头型，并有铝、铁、不锈钢等材质的选择。
详细介绍

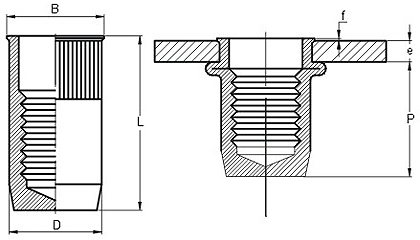

e | | Dmax | B | f | L | P | Setting Load | Torque(N.m.) | ||
max | ||||||||||
M3 | 0.5 | 1.5 | 5 | 4.98 | 6 | 0.4 | 12.6 | 10.1 | 3500 | 1.2 |
1.5 | 3 | 5 | 4.98 | 6 | 0.4 | 14.1 | 10.0 | 3500 | 1.2 | |
M4 | 0.5 | 2.5 | 6 | 5.98 | 7 | 0.4 | 15.3 | 10.9 | 5600 | 3 |
2.5 | 4 | 6 | 5.98 | 7 | 0.4 | 16.9 | 10.9 | 5600 | 3 | |
M5 | 0.5 | 2.5 | 7 | 6.98 | 8 | 0.4 | 18.2 | 13.6 | 8500 | 6 |
2.5 | 4 | 7 | 6.98 | 8 | 0.4 | 19.8 | 13.6 | 8500 | 6 | |
M6 | 0.5 | 3 | 9 | 8.98 | 10 | 0.4 | 18.7 | 5.0 | 11000 | 10 |
3 | 4.5 | 9 | 8.98 | 10 | 0.4 | 20.3 | 13.6 | 11000 | 10 | |
4.5 | 6 | 9 | 8.98 | 10 | 0.4 | 21.9 | 13.6 | 11000 | 10 | |
M8 | 0.5 | 3 | 11 | 10.98 | 12 | 0.5 | 23.3 | 6.0 | 15000 | 24 |
3 | 4.5 | 11 | 10.98 | 12 | 0.5 | 24.9 | 18.0 | 15000 | 24 | |
4.5 | 6 | 11 | 10.98 | 12 | 0.5 | 26.5 | 18.0 | 15000 | 24 | |
M10 | 0.5 | 3 | 13 | 12.98 | 14 | 0.5 | 28.3 | 22.3 | 21000 | 48 |
3 | 4.5 | 13 | 12.98 | 14 | 0.5 | 29.9 | 22.3 | 21000 | 48 | |
4.5 | 6 | 13 | 12.98 | 14 | 0.5 | 31.5 | 22.3 | 21000 | 48 | |
