光身铆螺母主要应用于很薄的板上的铆接，对防转的螺纹承载力要求不高的地方使用。铁或不锈钢材质建议用小沉头；铝质铆螺母建议用平头。
详细介绍

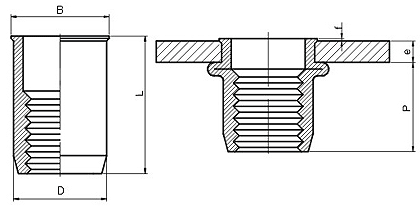

e. | | Dmax | f | B | E | L | P | Setting Load | Torque(N.m.) | ||
max | |||||||||||
M3 | 1 | 1.5 | 5 | 4.98 | 0.9 | 6.6 | 1 | 12.5 | 8.8 | 3500 | 1.2 |
1.5 | 3 | 5 | 4.98 | 1.3 | 7.2 | 1.4 | 13.0 | 8.8 | 3500 | 1.2 | |
3 | 4.5 | 5 | 4.98 | 1.3 | 7.2 | 1.4 | 14.5 | 8.8 | 3500 | 1.2 | |
4.5 | 6 | 5 | 4.98 | 1.3 | 7.2 | 1.4 | 16.0 | 8.8 | 3500 | 1.2 | |
M4 | 1 | 2 | 6 | 5.98 | 0.9 | 7.6 | 1 | 15.0 | 10.4 | 5500 | 3 |
2 | 3 | 6 | 5.98 | 1.3 | 8.2 | 1.4 | 15.5 | 10.4 | 5500 | 3 | |
3 | 5 | 6 | 5.98 | 1.3 | 8.2 | 1.4 | 17.0 | 10.4 | 5500 | 3 | |
5 | 7 | 6 | 5.98 | 1.3 | 8.2 | 1.4 | 19.0 | 10.4 | 5500 | 3 | |
M5 | 1.5 | 4 | 7 | 6.98 | 1.5 | 9.6 | 1.6 | 20.0 | 14.0 | 8000 | 6 |
4 | 6.5 | 7 | 6.98 | 1.5 | 9.6 | 1.6 | 23.0 | 14.0 | 8000 | 6 | |
6.5 | 9 | 7 | 6.98 | 1.5 | 9.6 | 1.6 | 26.0 | 14.0 | 8000 | 6 | |
M6 | 1.5 | 4 | 9 | 8.98 | 1.5 | 11.7 | 1.6 | 23.0 | 17.0 | 12000 | 10 |
4 | 6.5 | 9 | 8.98 | 1.5 | 11.7 | 1.6 | 26.0 | 17.0 | 12000 | 10 | |
6.5 | 9 | 9 | 8.98 | 1.5 | 11.7 | 1.6 | 29.0 | 17.0 | 12000 | 10 | |
M8 | 1.5 | 4 | 11 | 10.98 | 1.5 | 13.5 | 1.6 | 26.0 | 19.0 | 18000 | 24 |
4 | 6.5 | 11 | 10.98 | 1.5 | 13.5 | 1.6 | 29.0 | 19.0 | 18000 | 24 | |
6.5 | 9 | 11 | 10.98 | 1.5 | 13.5 | 1.6 | 32.0 | 19.0 | 18000 | 24 | |
M10 | 1.5 | 4 | 13 | 12.98 | 1.5 | 15.5 | 1.6 | 32.0 | 25.0 | 22000 | 48 |
4 | 6.5 | 13 | 12.98 | 1.5 | 15.5 | 1.6 | 35.0 | 25.0 | 22000 | 48 | |
6.5 | 9 | 13 | 12.98 | 1.5 | 15.5 | 1.6 | 38.0 | 25.0 | 22000 | 48 | |
