滚花圆身铆螺母使两个物料通过一个可承重的螺纹用螺栓紧密连接在一起。滚花竖纹使铆接好的螺母防转程度,较平滑圆柱有一定的提高。滚花圆柱铆螺母有平头和小沉头等头型,并有铝、铁、不锈钢等材质的选择。
沉头圆身滚花铆接螺母不锈钢闭口
详细介绍
e |

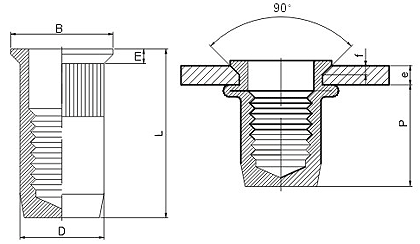

| Dmax | f | B | E | L | P | Setting Load | Torque(N.m.) | ||
max | |||||||||||
M3 | 1.3 | 2 | 5 | 4.98 | 0.9 | 7 | 1 | 13.1 | 10.2 | 3500 | 1.2 |
2 | 3 | 5 | 4.98 | 0.9 | 7 | 1 | 14.2 | 10.2 | 3500 | 1.2 | |
M4 | 1.3 | 2 | 6 | 5.98 | 0.9 | 8 | 1 | 14.3 | 11.2 | 5500 | 3 |
2 | 3 | 6 | 5.98 | 0.9 | 8 | 1 | 15.3 | 11.2 | 5500 | 3 | |
3 | 4 | 6 | 5.98 | 0.9 | 8 | 1 | 16.4 | 11.2 | 5500 | 3 | |
M5 | 1.5 | 2 | 7 | 6.98 | 0.9 | 9 | 1 | 17.3 | 13.9 | 8000 | 6 |
2 | 3 | 7 | 6.98 | 0.9 | 9 | 1 | 18.3 | 13.8 | 8000 | 6 | |
3 | 4 | 7 | 6.98 | 0.9 | 9 | 1 | 19.4 | 13.8 | 8000 | 6 | |
M6 | 1.5 | 3 | 9 | 8.98 | 0.9 | 11 | 1 | 18.3 | 136 | 13000 | 10 |
3 | 4 | 9 | 8.98 | 0.9 | 11 | 1 | 19.3 | 135 | 13000 | 10 | |
4 | 5 | 9 | 8.98 | 0.9 | 11 | 1 | 20.4 | 13.5 | 13000 | 10 | |
5 | 6 | 9 | 8.98 | 0.9 | 11 | 1 | 21.5 | 13.5 | 13000 | 10 | |
M8 | 1.5 | 3 | 11 | 10.98 | 1.4 | 14 | 1.5 | 21.3 | 16.5 | 20000 | 24 |
3 | 4 | 11 | 10.98 | 1.4 | 14 | 1.5 | 22.3 | 16.5 | 20000 | 24 | |
4 | 5 | 11 | 10.98 | 1.4 | 14 | 1.5 | 23.4 | 16.5 | 20000 | 24 | |
5 | 6 | 11 | 10.98 | 1.4 | 14 | 1.5 | 24.5 | 16.5 | 20000 | 24 | |
M10 | 1.5 | 3 | 13 | 12.98 | 1.4 | 16 | 1.5 | 27.4 | 21.9 | 22000 | 48 |
3 | 4.5 | 13 | 12.98 | 1.4 | 16 | 1.5 | 29.0 | 21.9 | 22000 | 48 | |
4.5 | 6 | 13 | 12.98 | 1.4 | 16 | 1.5 | 30.6 | 21.9 | 22000 | 48 |
