滚花圆身铆螺母使两个物料通过一个可承重的螺纹用螺栓紧密连接在一起。滚花竖纹使铆接好的螺母防转程度，较平滑圆柱有一定的提高。滚花圆柱铆螺母有平头和小沉头等头型，并有铝、铁、不锈钢等材质的选择。
平头圆身滚花铆接螺母钢制开口
详细介绍

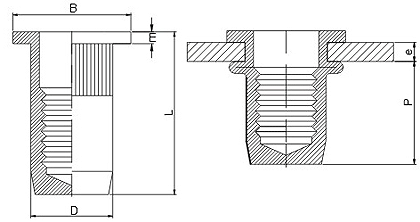

e. | | Dmax | B | E | L | P | Setting Load | Torque(N.m.) | ||
min | max | |||||||||
M3 | 0.5 | 2 | 5 | 4.98 | 7 | 1 | 9.5 | 6 | 3500 | 1.2 |
2 | 3.5 | 5 | 4.98 | 7 | 1 | 11 | 6 | 3500 | 1.2 | |
3.5 | 5 | 5 | 4.98 | 7 | 1 | 12.5 | 6 | 3500 | 1.2 | |
M4 | 0.5 | 2 | 6 | 5.98 | 8 | 1 | 10.5 | 6.3 | 5600 | 3 |
2 | 3.5 | 6 | 5.98 | 8 | 1 | 12 | 6.3 | 5600 | 3 | |
3.5 | 5 | 6 | 5.98 | 8 | 1 | 13.5 | 6.3 | 5600 | 3 | |
M5 | 0.5 | 1 | 7 | 6.98 | 10 | 1 | 12 | 8 | 8500 | 6 |
1 | 2 | 7 | 6.98 | 10 | 1 | 13 | 8 | 8500 | 6 | |
2 | 3 | 7 | 6.98 | 10 | 1 | 14 | 8 | 8500 | 6 | |
3 | 4 | 7 | 6.98 | 10 | 1 | 15 | 8 | 8500 | 6 | |
M6 | 0.7 | 1.5 | 9 | 8.98 | 13 | 1.5 | 14.5 | 10 | 11000 | 10 |
1.5 | 3 | 9 | 8.98 | 13 | 1.5 | 16 | 10 | 11000 | 10 | |
3 | 4.5 | 9 | 8.98 | 13 | 1.5 | 17.5 | 10 | 11000 | 10 | |
M8 | 1 | 2 | 11 | 10.98 | 16 | 1.5 | 17 | 10.8 | 15000 | 24 |
2 | 3.5 | 11 | 10.98 | 16 | 1.5 | 18.5 | 10.8 | 15000 | 24 | |
3.5 | 5 | 11 | 10.98 | 16 | 1.5 | 20 | 10.8 | 15000 | 24 | |
M10 | 1 | 1.5 | 13 | 12.98 | 16 | 2, | 20.8 | 15 | 21000 | 48 |
1.5 | 3 | 13 | 12.98 | 16 | 2 | 22.4 | 15 | 21000 | 48 | |
3 | 4.5 | 13 | 12.98 | 16 | 2 | 24 | 15 | 21000 | 48 | |
4.5 | 6 | 13 | 12.98 | 16 | 2 | 25.6 | 15 | 21000 | 48 | |
